Professional Supplier Multi Colored FPC LED Strip Light SMD5050

As a forerunner, a professional manufacturer of led strip lights, we keep exploring and expanding the definition and boundary of strip lights. At present, our led tape light contains various categories and forms of light source and luminaire, as listed in our website and catalogue, such as RGB led strip, toning led strip, neon led strip, Linear Lighting, and related strip lights controllers, in order to provide clients building spatial light environments with perfect linear lighting solutions and best flexible led strip lights.


Product Detail

Product Tags

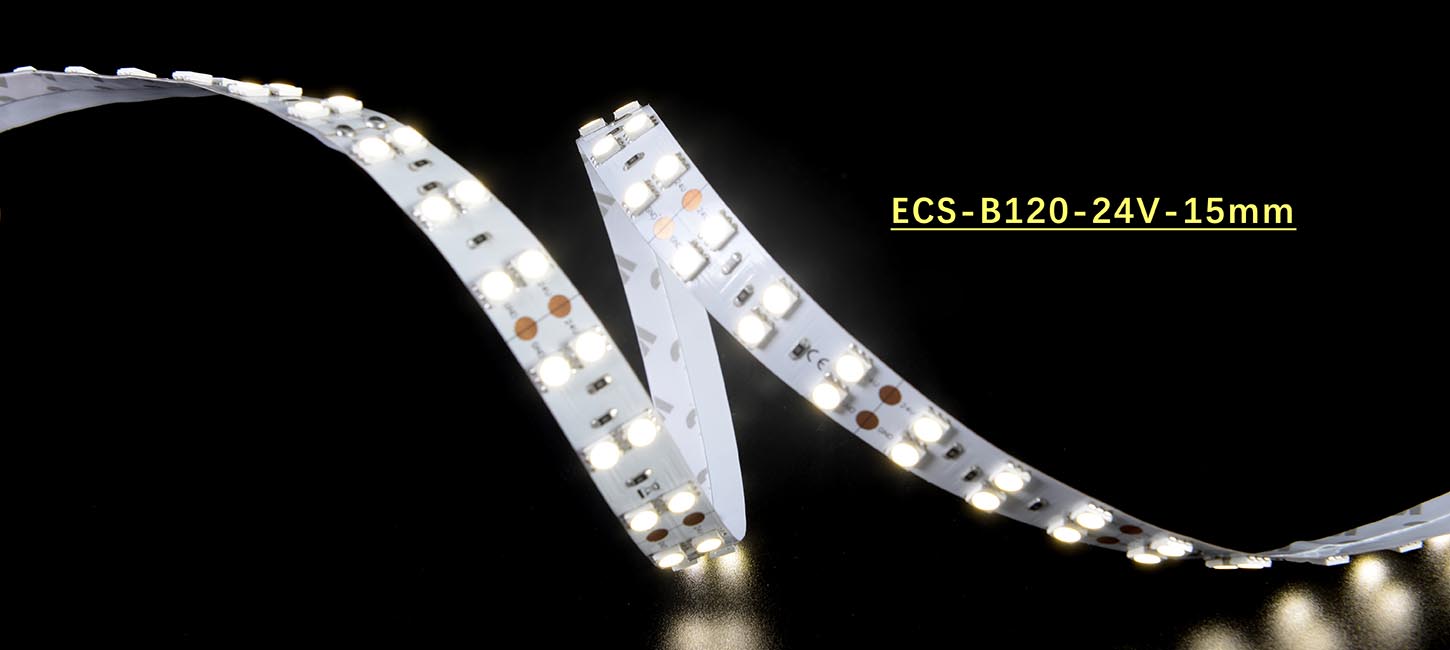

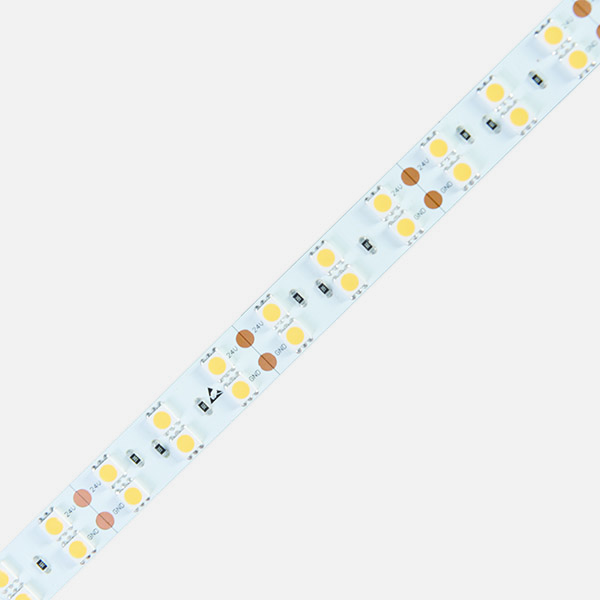

ECS-B120-24V-15mm

ECS-B120-24V-15mm

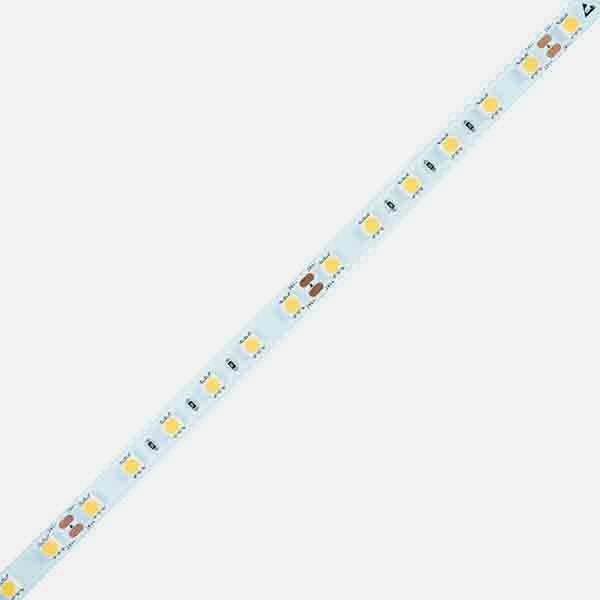

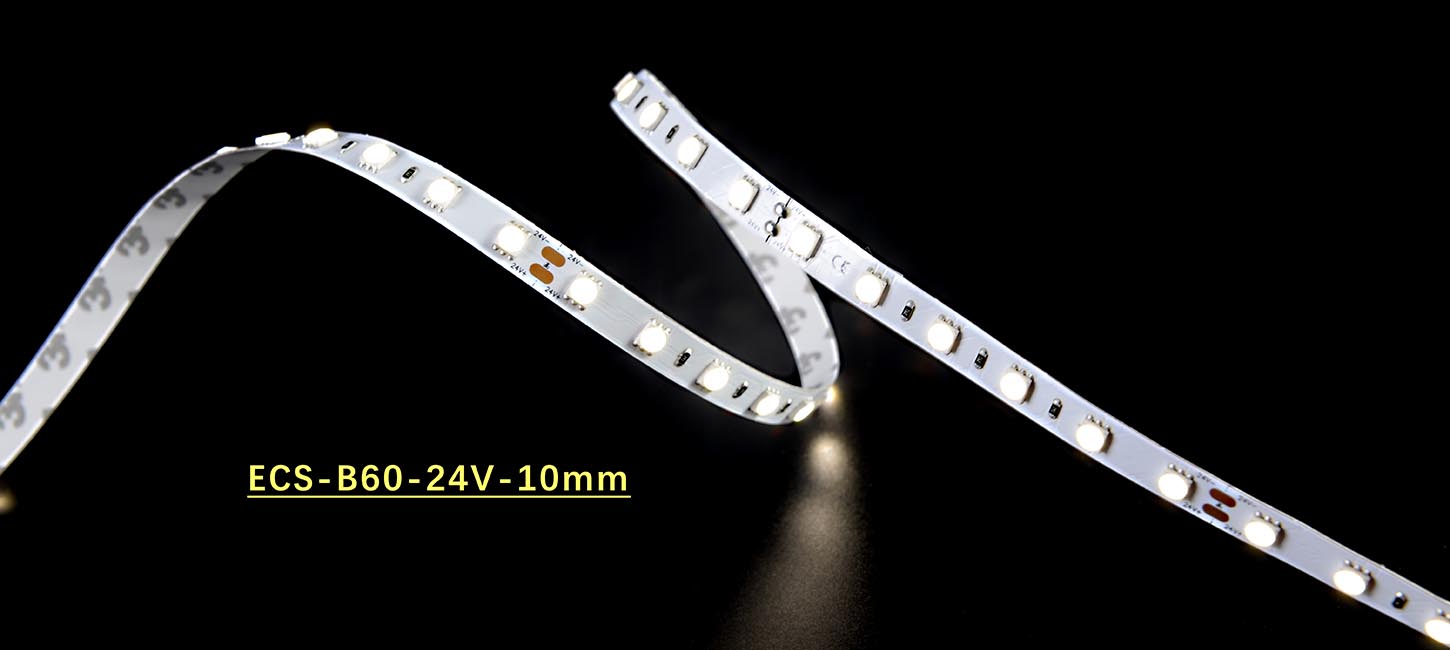

ECS-B60-24V-10mm

ECS-B60-24V-10mm

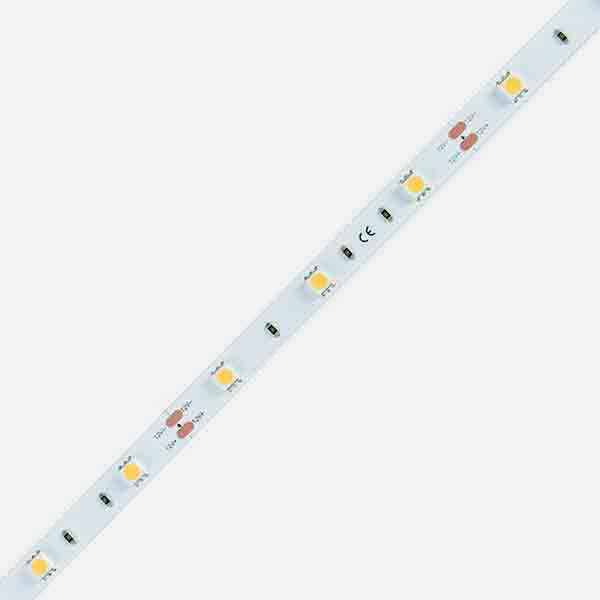

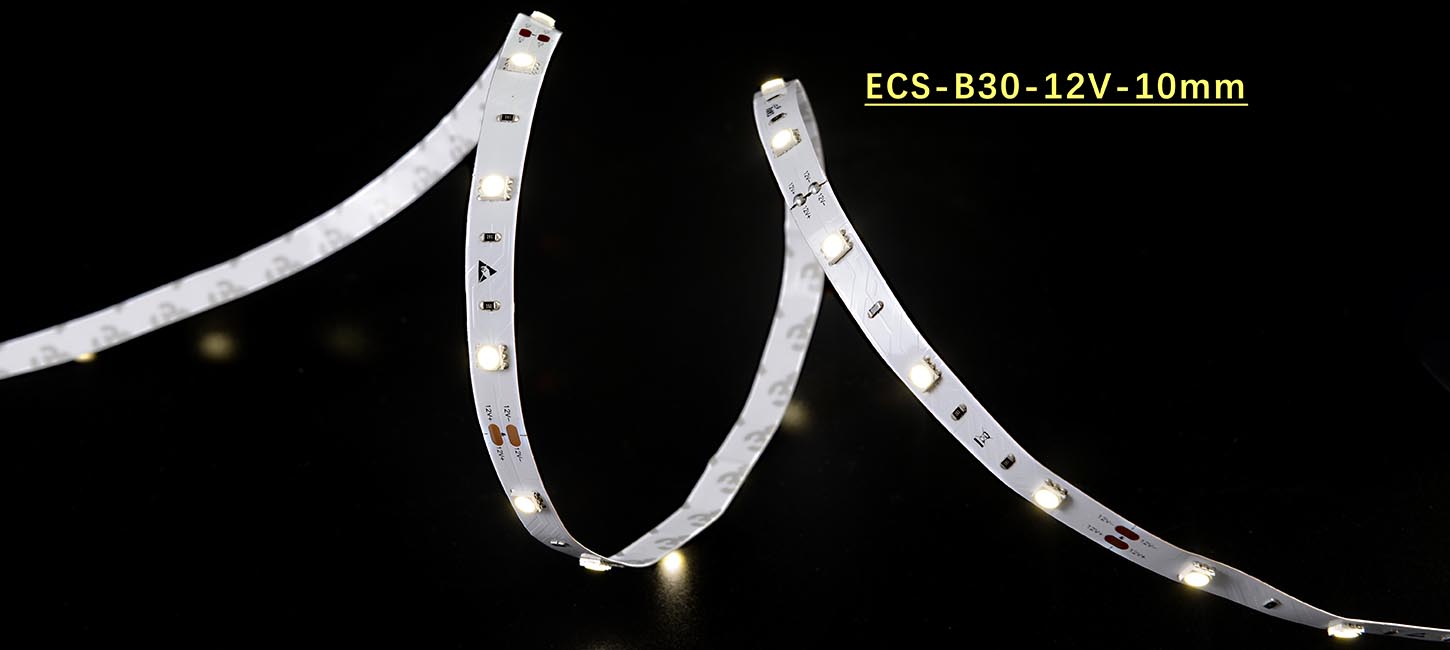

ECS-B30-12V-10mm

ECS-B30-12V-10mm

Brief Introduction

Std series, usually 5m led strips, are widely used for auxiliary lighting and decorative lighting. LED roll light adopts universal SMD LEDs, contains the 4.8W level, 9.6W level, 14.4W level of low &medium power and brightness used for dark slot and decorative lighting, the 19.2W level, 24W level of medium& high power and brightness for auxiliary lighting. Std series is suitable for auxiliary lighting and decorative lighting of ceilings and grooves in residential, shop, restaurant and meeting rooms.
Spectroscopic standard of LED strip
Complies with international ANSI standard, we divide every CCT into 2 or 3 bins, which is as small as 2-step, to ensure customers to get the same color even for different orders of led strip lights.
Choose any color as you want for all the led strip
You can customize any color, wavelength, CCT, and BIN coordinate of LED in addition to conventional color, CCT and BIN.
SDCM <2
To provide our clients with best led strip lights, all our led stirp with SDCM <2, no visual difference between the same batch of products
Customer-specific Bin management
Always the same Bin for different batches One bin,2-step, all strip lights are without visual difference forever
LED tape FS CRI>98, as natural as sunshine
The color rendition is as natural as sunshine with the CRI≥95 or full spectrum LEDs;
LED strip Application Guidelines
Different color temperatures for different environments make it possible to choose appropriate LED strip light source as required.

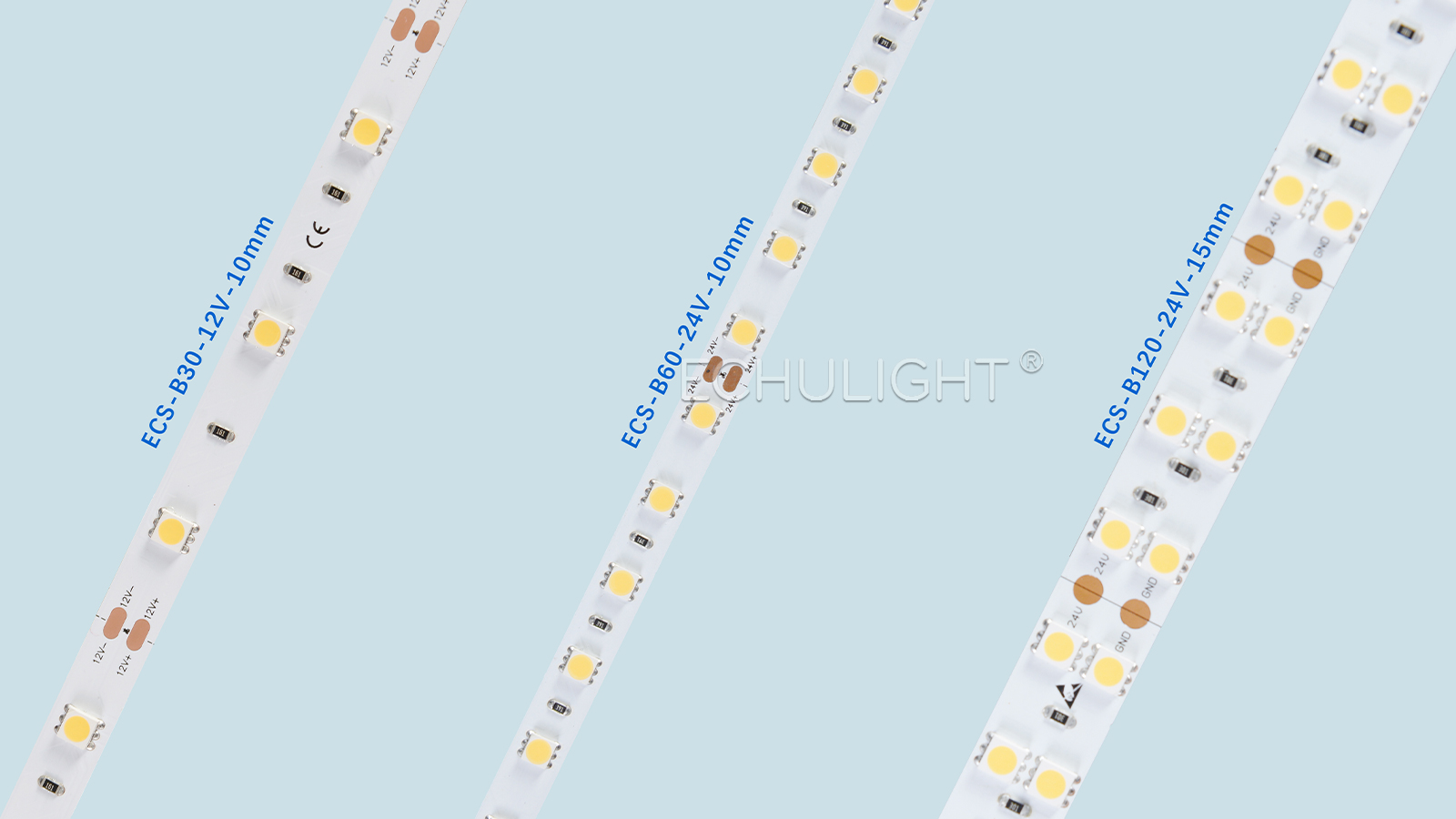

05-1

Products Specification

Model

LEDs/m

DC

(V)

Preview

Cutting Unit
(LEDs/mm)

Power

(W/m)

LM/m

CRI

FPC Width
(mm)

Warranty
(year)

ECS-B30-12V-10mm

30

12

3/100

7.2

572

>80

10

3

ECS-B60-24V-10mm

60

24

6/100

14.4.

1135

>80

10

3

ECS-B120-24V-15mm

120

24

6/50

28.8

2240

>80

15

3

Basic Parameters

Model

Size

Input Current

Typ. Power

Max. Power

Beam Angle

Copper Foil

ECS-B30-12V-10mm

5000*10*2.1mm

0.6A/m & 3A/5m

6.2W/m

7.2W/m

120°

2oz

ECS-B60-24V-10mm

5000*10*2.1mm

0.6A/m & 3A/5m

12.5W/m

14.4W/m

120°

2oz

ECS-B120-24V-15mm

5000*15*2.1mm

1.2A/m & 6A/5m

27W/m

28.8W/m

120°

2oz

a3
a2
a1

CCT/Color Options

12131

IP Process Options

IP1
IP2
IP3
IP4
IP5
IP6
IP7

ECS-B30-12V-10mm

ECS-B120-24V-15mm

ECS-B60-24V-10mm

Packing Options

1. ECHULIGHT brand package

packing1

2. General customized package

packing2

3. Engineering packaging of NO(IP20)/NA(IP65)

packing3

*All the information displayed are for your reference only and subject to our final confirmation.
