OEM Customized Luminaire Lighting - Factory Special Offer Ultra-long Flexible LED Strip SMD2835 – Huazhao


Product Detail

Product Tags

Related Video

Feedback (2)

abide by the contract", conforms on the market requirement, joins from the market competition by its good quality likewise as provides more comprehensive and superb support for customers to let them become large winner. The pursue of the company, is definitely the clients' pleasure for Led Controller Lights, Led 5 Meter, Light Strips For Room, If you are looking for Good Quality at a good price and timely delivery. Do contact us.

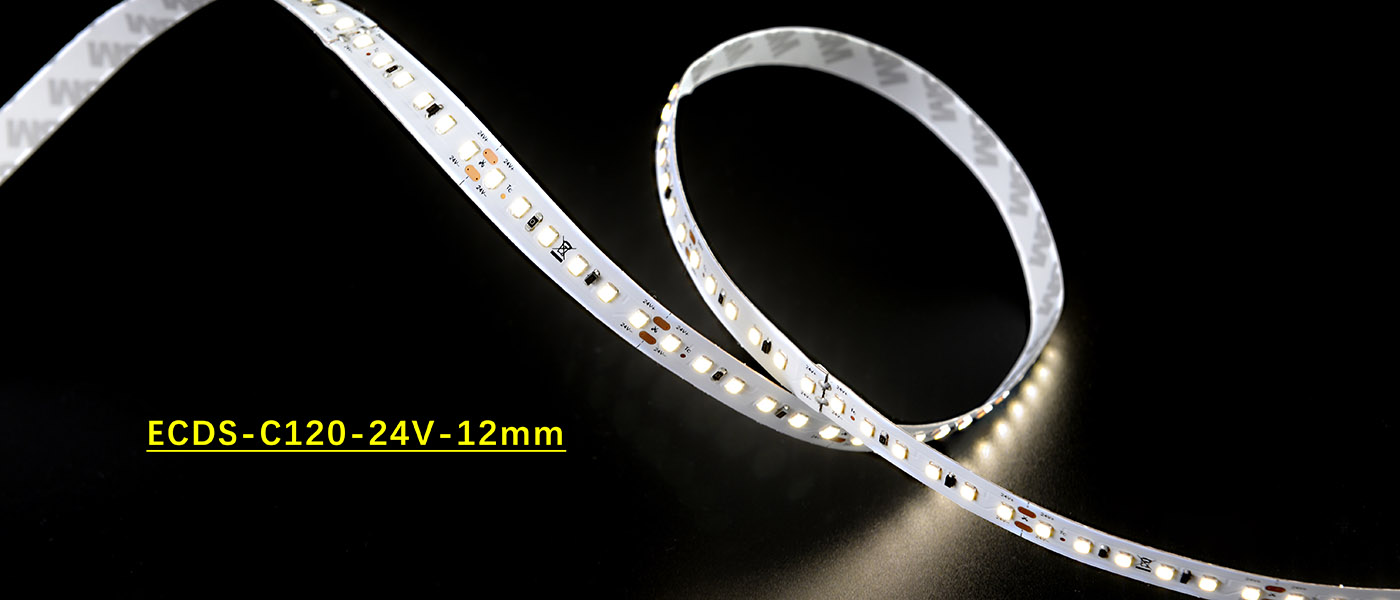

OEM Customized Luminaire Lighting - Factory Special Offer Ultra-long Flexible LED Strip SMD2835 – Huazhao Detail:

ECDS-C120-24V-12mm1

ECDS-C120-24V-12mm

Cutting Unit

Cutting Unit

Brief Introduction

Full scene led strip which can help you optimize your products list, reduce the mix color mistake cost, lower the purchasing communication cost, saving the warehouse stock management cost, and better the marketing and sales person product training cost etc.
Our LED strip provides four series of tape light, including “PRO Series”, “STD Series”, “Toning Series” and “Neon Series”. Customers can select the most suitable led tape in terms of the applications, requirements of functions, projects, and budgets.
Adheres to independent R&D and sustaining innovation, and our products passed the ISO9001 QMS & ISO14001 EMS certification. All products have passed the testing of the third-party authoritative laboratories and have attained the quality certification from a variety of countries and regions: CE, REACH, ROHS, UL, TUV, LM-80 and so on.

Products Specification

Model

LEDs/m

DC(V)

Preview

Cutting Unit
(LEDs/mm)

Power

(W/m)

LM/m

CRI

FPC Width
(mm)

Warranty
(year)

ECDS-C120-24V-12mm

120

24

6/50

9.6

1020

>80,>95

12

3

Basic Parameters

Model

Size

Input Current

Typ. Power

Max. Power

Beam Angle

Copper Foil

ECDS-C120-24V-12mm

20000*8*1.5mm

0.363A/m & 7.1A/5m

8.7W/m

9.6W/m

120°

3oz

2

CCT/Color Options

12

IP Process Options

IP1
IP2
IP3
IP4
IP5
IP6
IP7

ECDS-C120-24V-12mm IP Process

Packing Options

1. ECHULIGHT brand package

packing1

2. General customized package

packing2

3. Engineering packaging of NO(IP20)/NA(IP65)

packing3

*All the information displayed are for your reference only and subject to our final confirmation.

Precautions

※ Please drive the led strip with required isolated power, and the ripple of the constant voltage source should be less than 5%.
※ Please do not bend the strip into an arc with a diameter less than 60mm to ensure the longevity and reliability.
※ Do not fold it in case any damage of LED beads.
※ Do not pull the power wire hard to ensure the longevity. Any Crash may damage the LED light is prohibited.
※ Please make sure the wire is connected to the anode and cathode correctly. The power output should be consistent with the voltage of the strip to avoid damage.
※ LED lights should be stored in dry, sealed environment. Please only unpack it before usage. Ambient temperature: -25℃~40℃.Storage temperature: 0℃~60℃.Please use the strips without waterproof within indoor environment with humidity less than 70%.
※ Please be careful during operation. Do not touch the AC power supply in case of electric shock.
※ Please leave at least 20% power for the power supply during using to ensure there is enough power supply to drive the product.
※ Do not use any acid or alkaline adhesives to fix the product (e.g.: glass cement).


Product detail pictures:

OEM Customized Luminaire Lighting - Factory Special Offer Ultra-long Flexible LED Strip SMD2835 – Huazhao detail pictures

OEM Customized Luminaire Lighting - Factory Special Offer Ultra-long Flexible LED Strip SMD2835 – Huazhao detail pictures
