Our firm aims to operating faithfully, serving to all of our shoppers , and working in new technology and new machine consistently for 8ft Led Strip Light, Led Flexible Light, Led Strip Lights For Bedroom, Now we have extensive goods source as well as price tag is our advantage. Welcome to inquire about our products and solutions.
Factory For Ikea Led Light Strip - Color Changing Flexible RGB LED Strip Lights SMD5050 LED – Huazhao Detail:

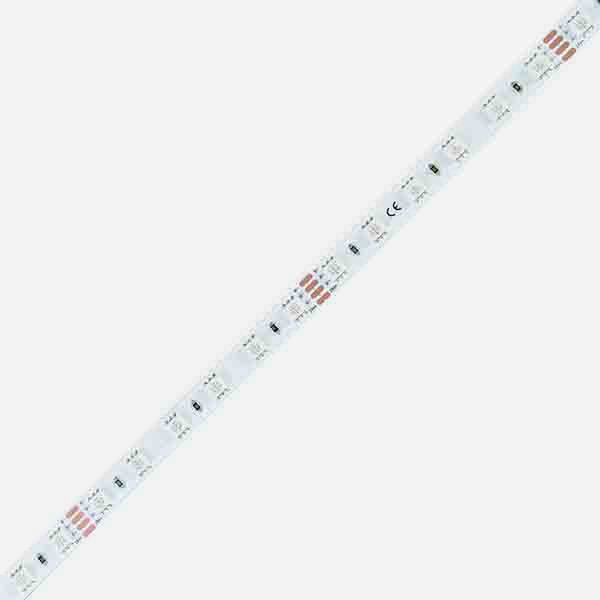

ECS-B60RGB-24V-10mm1

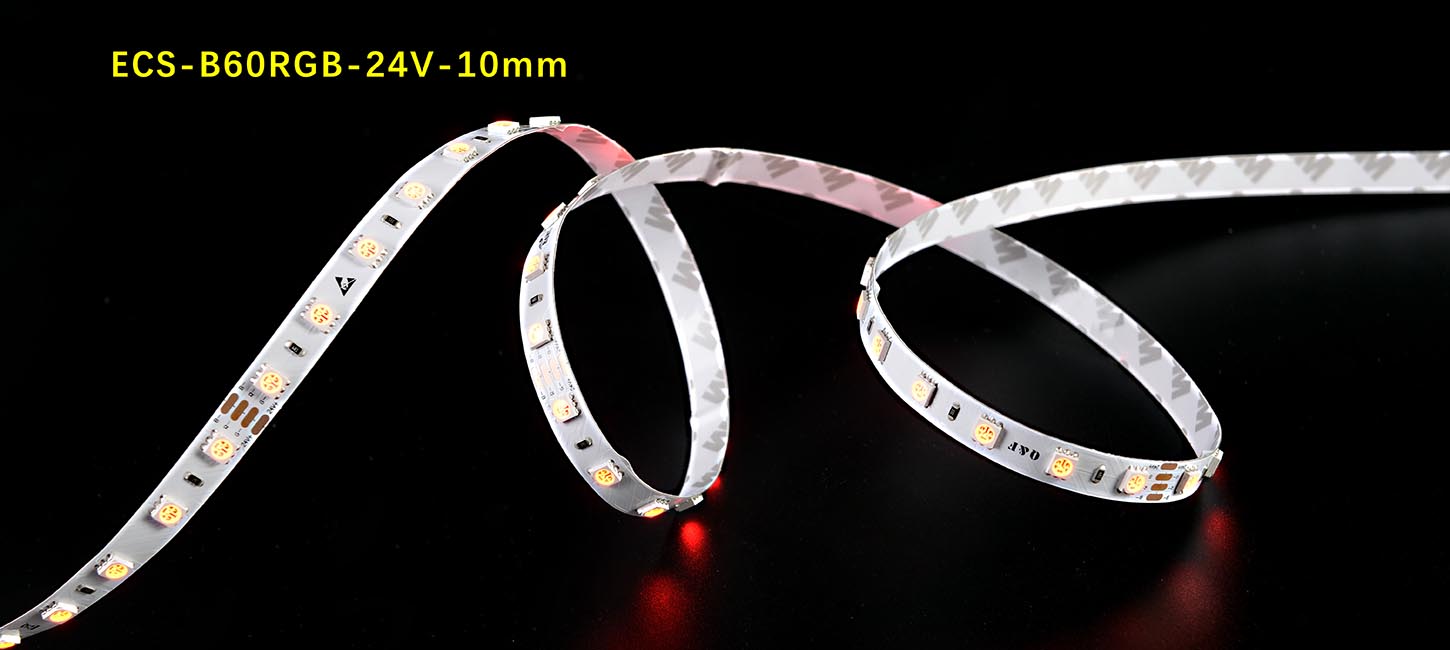

ECS-B60RGB-24V-10mm

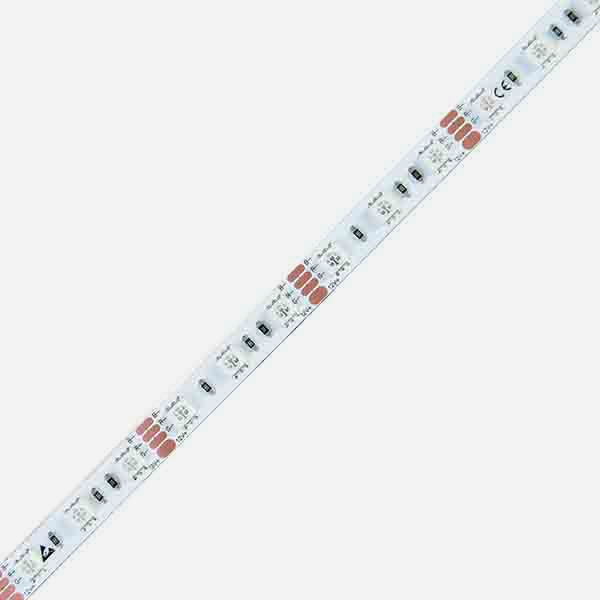

ECS-B60RGB-12V-10mm1

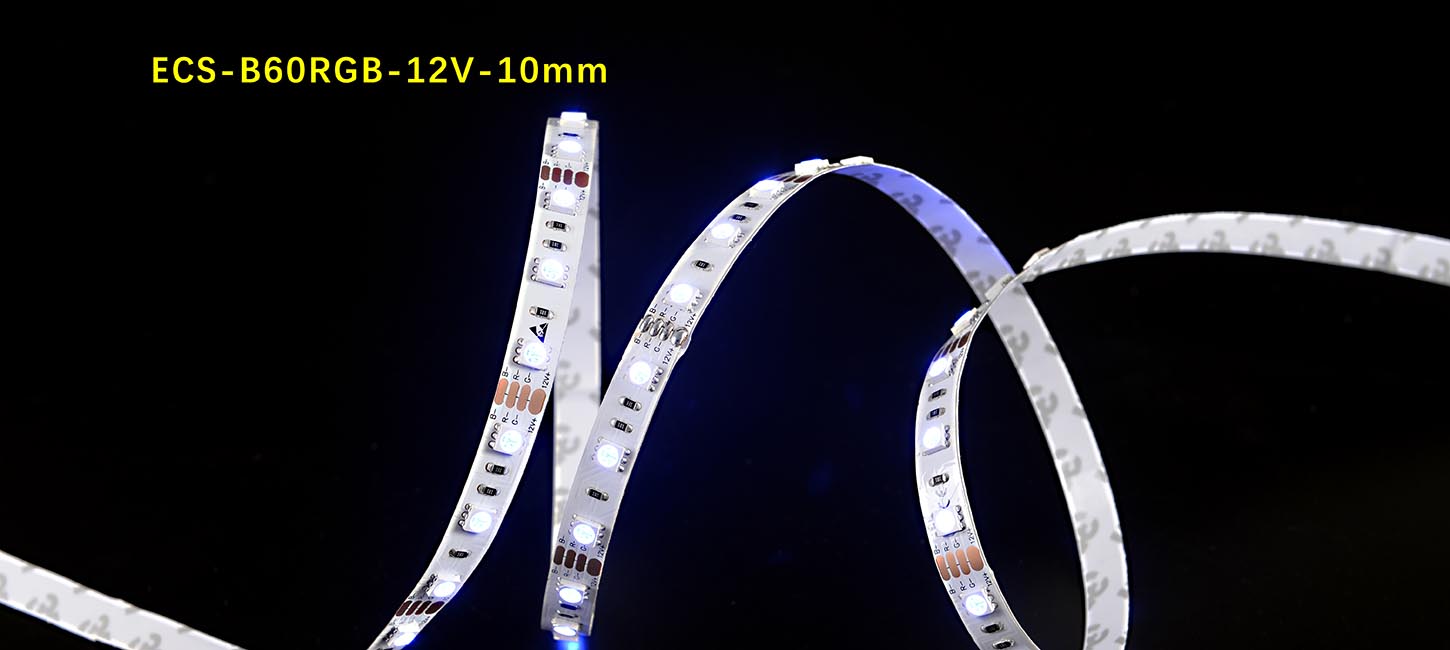

ECS-B60RGB-12V-10mm

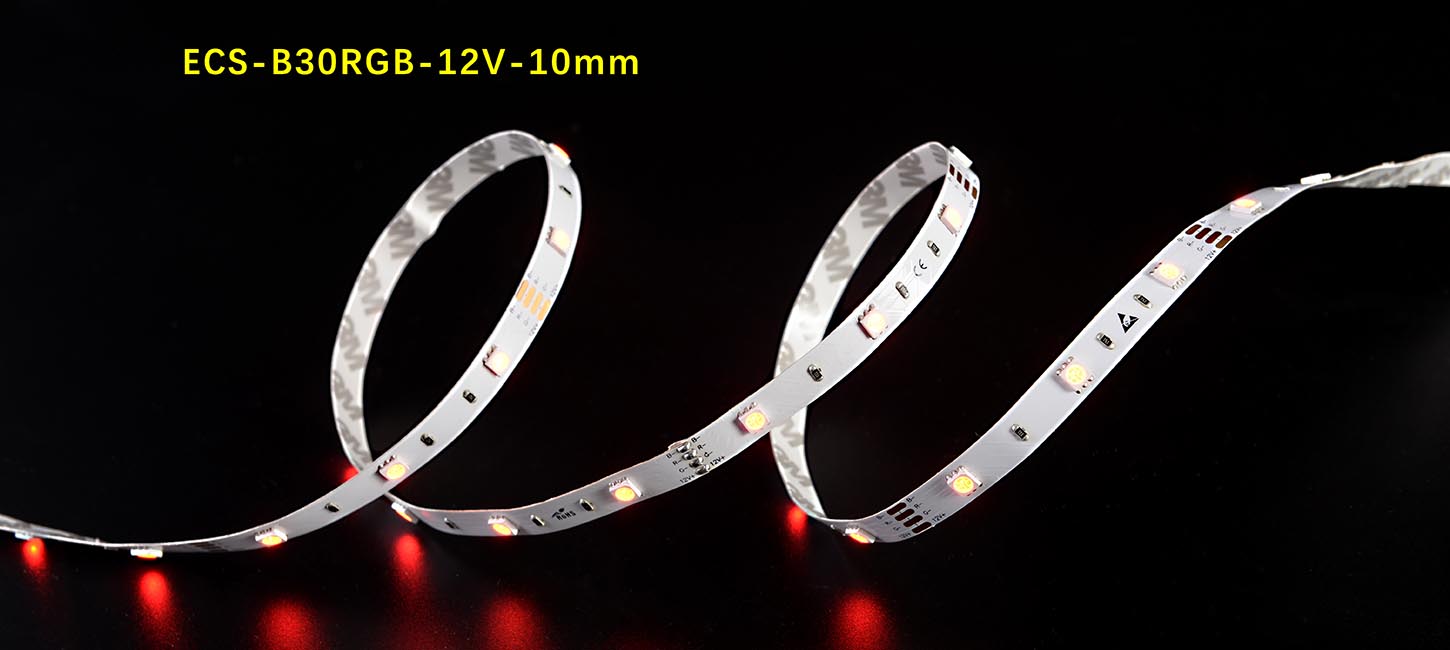

ECS-B30RGB-12V-10mm1

ECS-B30RGB-12V-10mm

Brief Introduction

Toning series of led strip can meet the requirements of CCT changing in the same space during different periods for different users. It contains toning LED strip with dual white light, the RGB LED strip features color changing, the RGBW LED strip, and the digital LED strip features dynamic color changing. The series is widely compatible with all kinds of dimming &toning controllers. Toning series is widely used for residential space, showcasing space, entertainment space, bar, KTV, and hotel, to achieve decorative lighting, atmosphere creation and scenarios changing in holidays. Such as led light strips for room, led strip lights for ceiling, led strip lights for bedroom, RGB led strip, hue light strip, RGB light strip, RGB strip, RGBW led strip, rgbic led strip, color changing led strip lights, multi colored led strip lights etc.
Spectroscopic standard of LED strip
Complies with international ANSI standard, we divide every CCT into 2 or 3 bins, which is as small as 2-step, to ensure customers to get the same color even for different orders of led strip lights.
Choose any color as you want for all the led strip
You can customize any color, wavelength, CCT, and BIN coordinate of LED in addition to conventional color, CCT and BIN.
SDCM <2
To provide our clients with best led strip lights, all our led stirp with SDCM <2, no visual difference between the same batch of products
Customer-specific Bin management
Always the same Bin for different batches One bin,2-step, all strip lights are without visual difference forever
LED tape FS CRI>98, as natural as sunshine
The color rendition is as natural as sunshine with the CRI≥95 or full spectrum LEDs;
LED strip Application Guidelines
Different color temperatures for different environments make it possible to choose appropriate LED strip light source as required.

Products Specification

Model

LEDs/m

DC

(V)

Preview

Cutting Unit
(LEDs/mm)

Power

(W/m)

FPC Width
(mm)

Warranty
(year)

ECS-B30RGB-12V-10mm

30

12

3/100

7.2

10

3

ECS-B60RGB-12V-10mm

60

12

3/50

14.4

10

3

ECS-B60RGB-24V-10mm

60

24

6/100

14.4

12

3

Basic Parameters

Model

Size

Input Current

Typ. Power

Max. Power

Beam Angle

Copper Foil

ECS-B30RGB-12V-10mm

5000*10*2.1mm

0.3A/m & 1.5A/5m

6.2W/m

7.2W/m

120°

2oz

ECS-B60RGB-12V-10mm

5000*10*2.1mm

0.6A/m & 3A/5m

12.5W/m

14.4W/m

120°

2oz

ECS-B60RGB-24V-10mm

5000*10*2.1mm

0.6A/m & 3A/5m

13.5W/m

14.4W/m

120°

2oz

a3
a2
a1

CCT/Color Options

1

IP Process Options

IP1
IP2
IP3
IP4
IP5
IP6
IP7

ECS-B30RGB-12V-10mm

1

ECS-B60RGB-12V-10mm

1

ECS-B60RGB-24V-10mm

1

Packing Options

1. ECHULIGHT brand package

packing1

2. General customized package

packing2

3. Engineering packaging of NO(IP20)/NA(IP65)

packing3

*All the information displayed are for your reference only and subject to our final confirmation.

Precautions

※ Please drive the led strip with required isolated power, and the ripple of the constant voltage source should be less than 5%.
※ Please do not bend the strip into an arc with a diameter less than 60mm to ensure the longevity and reliability.
※ Do not fold it in case any damage of LED beads.
※ Do not pull the power wire hard to ensure the longevity. Any Crash may damage the LED light is prohibited.
※ Please make sure the wire is connected to the anode and cathode correctly. The power output should be consistent with the voltage of the strip to avoid damage.
※ LED lights should be stored in dry, sealed environment. Please only unpack it before usage. Ambient temperature: -25℃~40℃.
Storage temperature: 0℃~60℃.Please use the strips without waterproof within indoor environment with humidity less than 70%.
※ Please be careful during operation. Do not touch the AC power supply in case of electric shock.
※ Please leave at least 20% power for the power supply during using to ensure there is enough power supply to drive the product.
※ Do not use any acid or alkaline adhesives to fix the product (e.g.: glass cement).
